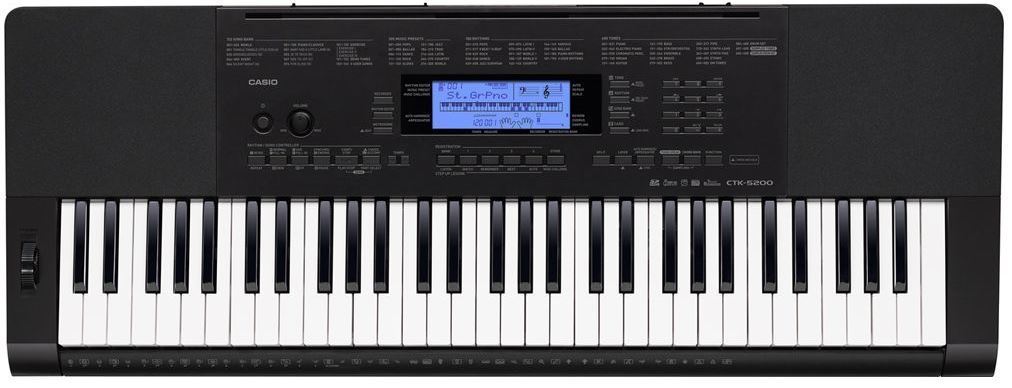

Casio CTK5200 Keyboard

A Very Versatile Keyboard for all styles.

Keyboard
61 piano-style keys
Touch Response
2 sensitivity levels, Off
Sound Source
AHL
Maximum Polyphony
48
Tones
600 built-in tones
Layer/Split
Layer, Split
Digital Effects
Reverb (10 types), Chorus (5 types)
Rhythms/Patterns
180 built-in rhythms (10 user rhythms)
Auto Accompaniment
Modes: CASIO Chord, Fingered 1, Fingered 2 (6th off), Fingered 3 (on bass), Full Range Chord
Controllers: Start/Stop, Intro, Normal/Fill-in, Variation/Fill-in, Synchro/Ending
Built-in Songs
152 (Song Bank)
Song Expansion
10 songs maximum (up to 320KB total)
Lesson Function
Step Up Lesson
Phrases
Lesson Part select
Performance evaluation
Voice fingering guide
(Lesson part : right hand, left hand, both hands)
Metronome
Beats: 0, 2, 3, 4, 5, 6 (Tempo range: quarter note = 30 to 255)
Recorder
6 tracks x 5 songs (performance recording), 1 song (lesson recording), approximately 12,000 notes total, real-time recording/playback
Sampling Function
Maximum sampling capacity: :Up to 8 sounds
Maximum total sampling time: :Up to 10 seconds
Sampling sound input: AUDIO IN jack
Other Functions
Rhythm Editor (10 user rhythms)
Registration: 32 setups (4 sets x 8 banks)
Music Preset: 305 presets
One Touch Preset: 180 sets
Auto Harmonize: 12 types
Arpeggiator: 90 types
Preset Scale: Equal temperament + 16 types
Octave Shift: ±2 octaves
Music Challenge
Pitch bend wheel : 0 to 12 semitones
Rhythm/Song controller
Piano/Organ Button
Chord Book
Key Transpose
25 steps (--12 to +12 semitones)
Tuning Control
A4 = 415.5 to 465.9 Hz (Initial Default: 440.0 Hz)
Pedals
Standard jack (sustain, sostenuto, soft, rhythm)
Display Screen
LCD with backlight
USB Memory / SD Memory
Supported memory cards: Up to 32GB SD memory cards or SDHC memory cards
Functions: SMF playback (up to 320KB per file), file save/load/delete, card format
Save/load: Registrations, user rhythms, user tones, user DSPs, user music presets, song sequencer songs
MIDI
GM Compatibility: Level1
Terminals: USB
Speakers
12cm x 2
Amp Output
2.5W + 2.5W
Input/Output Terminals
HEADPHONES/OUTPUT (standard stereo jack)
SUSTAIN/DAMPER
AUDIO IN
USB: type B*
EXTERNAL POWER (9.5V DC)

• USB cable (A-B type) required to use USB terminal for computer connection.
  Power Requirements
  AC adaptor: AD-E95100L
  Dimensions (W x D x H)
  948 x 350 x 103 mm
  Weight
  4.4kg (Without batteries)
  Body Color/Finish
  Black
  Included Accessories
  Music stand, song book
