Toms Line Rechargeable Power Supply

No Power at the Gig No Worries with this Power Pack.

Safety Features

• If the Power Bank is over recharged, it will stop recharging automatically.
• LED light to indicate recharging automatically when the power is near to exhausted.
• If the recharging voltage higher or lower than what the Power Bank required, recharging will be stopped automatically.
• If power polarity of recharging or offering is opposite, the Power Bank will protect itself automatically.
• If no power output or power output less than 5 mA, the Power Bank will turn off automatically. Press the button again to turn on the Power Bank.

Specifications

Recharging Voltage： 10V

Output Voltage： 9V

Recharging Time：5hours

Output Current：5mA---700mA

Power Capacity： 2000 mAH / 7.4V

Output Ripple：30mV / 50mA

Consumption under Sleep Mode： 35uA

Package List: Adapter, 1 piece; Rechargeable power box, 1 piece; Power line, 1 piece; Operation manual

How to Use

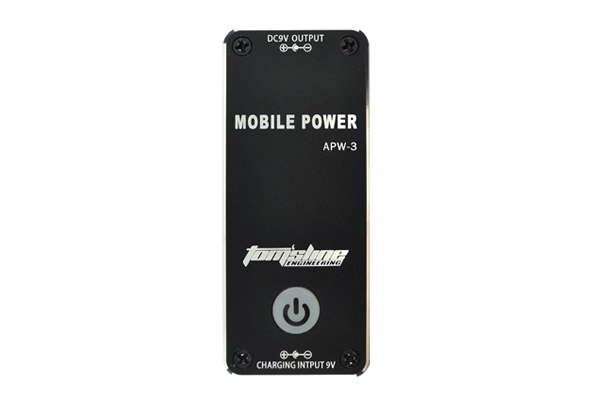

The Power situation of APW-3 is Indicated by a LED light underneath the press button.

Press the button to turn on the Power Bank. LED light flashes from colour red to orange and to green, and finally stops at one colour. Different colour indicates different situation as below.

Red LED light, power less than 10%.
